3D Camera Model 800
1. Hardware
|
Item
|
Specification
|
Dimensions
|
410mm(W)*140mm(H)*205mm(D)
|
Weight
|
4.0kg
|
Power
|
AC110V~240V, 200W
|
Capture Device
|
>8M Pixels
|
Capture speed
|
<0.5 sec.
|
Pattern Projector
|
Single Color Projector
|
2.Scanning Data

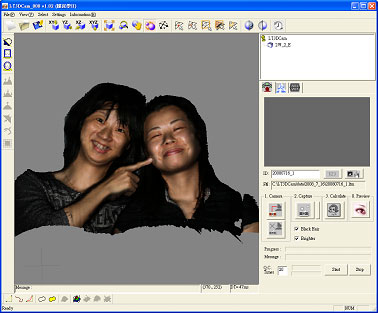

B. LT3DCam®: 3D Camera Controlling and Editing Software, include Crystal Making PlugIn
1. Computer Requirement
|
Item
|
Specification
|
CPU
|
Intel P4 2.4 or Higher
|
RAM
|
512MB
|
OS
|
Windows 2000, XP, Vista (32 bits)
|
USB Port
|
2
|
2. Functions
|
Item
|
Specification
|
Input 3D Format
|
STL, OBJ, 3DS, LTM, TGL
|
Output 3D Format
|
STL, OBJ, 3DS, WRL, LTM, TGL
|
Viewing Fun.
|
Front, Top, Side, ISO View, Point/Polygon, Texture On/Off, Rotate, Scale, Pan, Zoom In/Out
|
Selection Fun.
|
Point (Single/Group), Triangle (Single/Group), Boundary
|
Editing Fun.
|
Triangle (Delete, Smooth, Remesh), Boundary (Hole Fill)
|
Modeling Fun.
|
Registration, Merge, Combine, Stitch
|

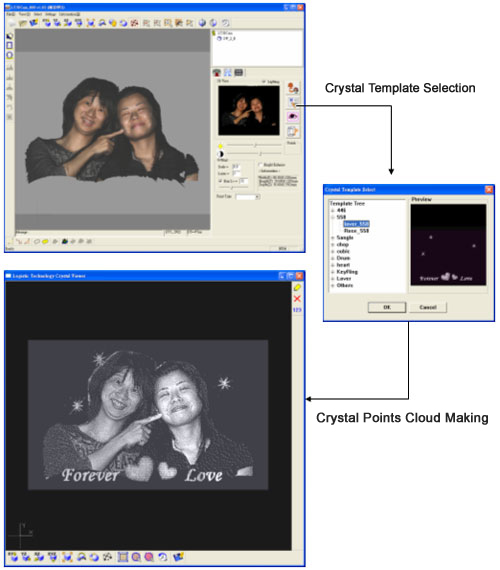

C. LT3DCam PlugIn : 3D Crystal Point Clouds Generator
|
