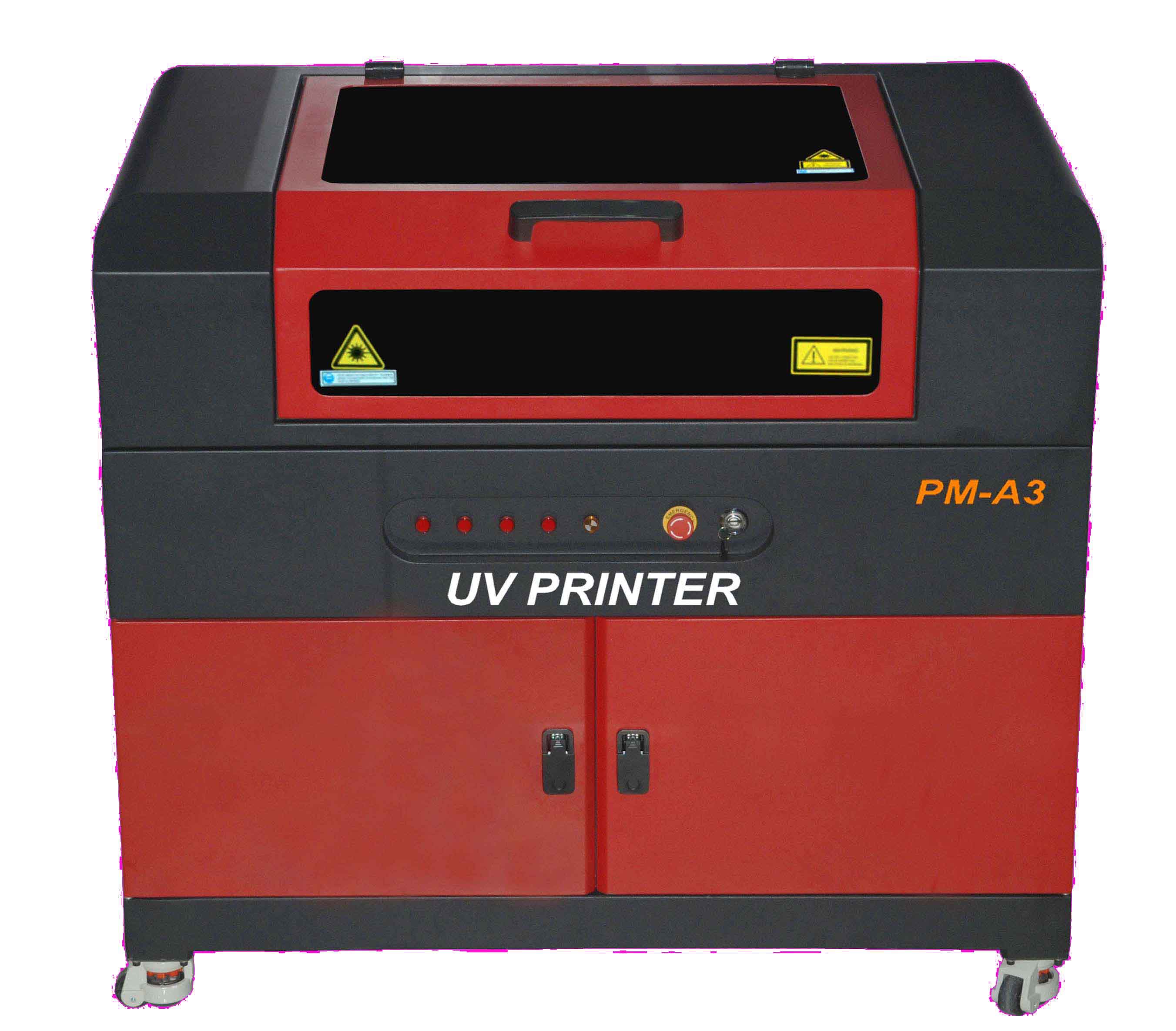

    Name: UV PRINTER     Model: PM-A3     View:0times

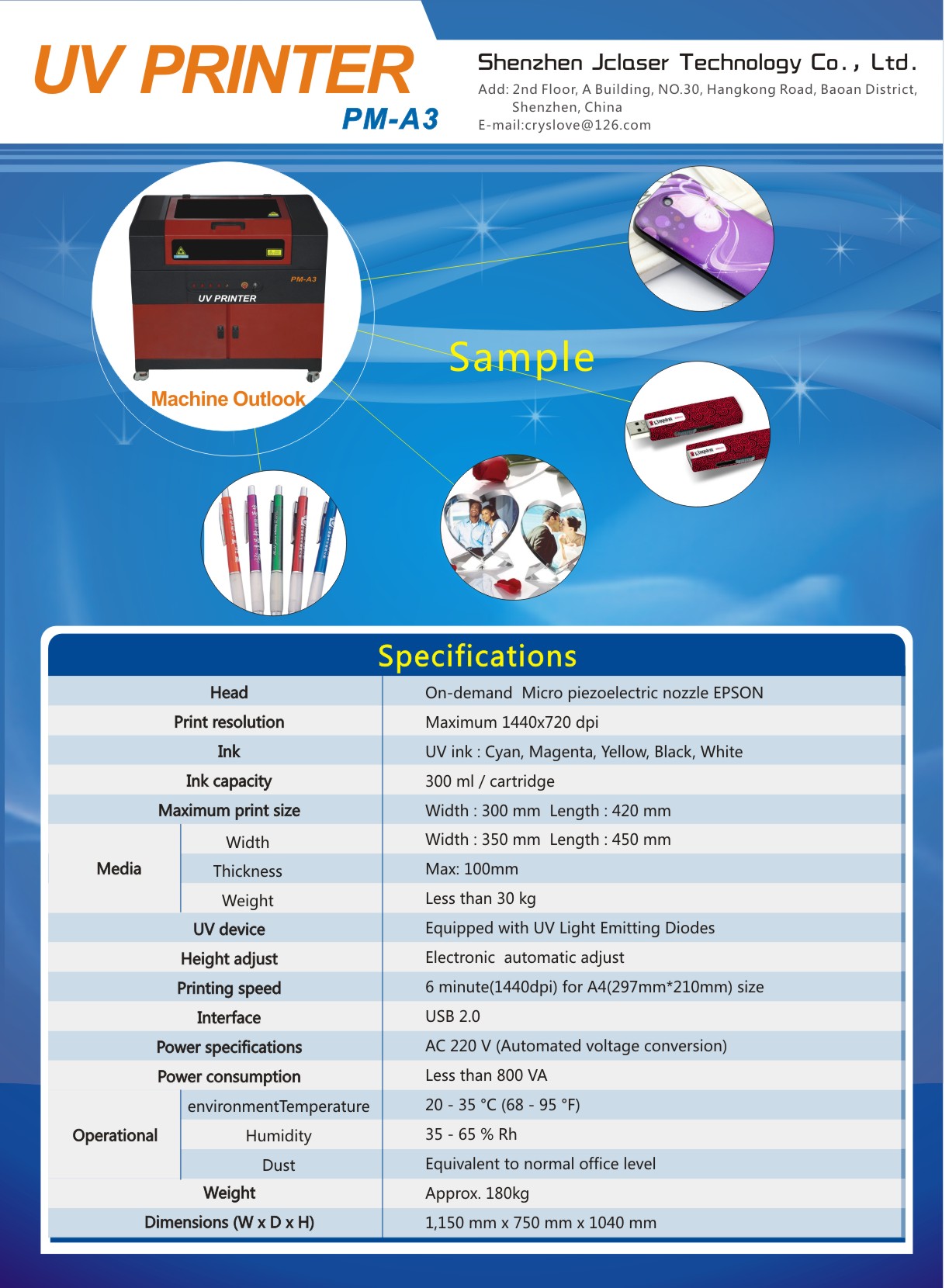

                                                                     Specifications

                                               Head : On-demand  Micro piezoelectric nozzle EPSON
                                                         Print resolution :Maximum 1440x720 dpi
                                                   Ink :UV ink(Cyan, Magenta, Yellow, Black, White)
                                                                Ink capacity :300 ml / cartridge
                                                Maximum print size Width : 300 mm  Length : 420 mm
                                                      Media Width Width : 350 mm  Length : 450 mm
                                                                           Thickness:Max:100
                                                                       Weight: Less than 30 kg
                                                  UV device: Equipped with UV Light Emitting Diodes
                                                         Height adjust: Electronic  automatic adjust
                                            Printing speed :6 minute(1440dpi) for A4(297mm*210mm) size
                                                                           Interface: USB 2.0
                                             Power specifications: AC 220 V (Automated voltage conversion)
                                                               Power consumption: Less than 800 VA
                                               Operational environment :Temperature 20 - 35 °C (68 - 95 °F)
                                                                          Humidity :35 - 65 % Rh
                                                              Dust Equivalent to normal office level
                                                                        Weight: Approx. 180kg
                                                  Dimensions (W x D x H) 1,150 mm x 750 mm x 1040 mm


PM-A3 UV printer have capabilities to print directly on a vast array of substrates and three -dimensional objects, including giftware, awards, packaging, prototypes, and promotional and industrial products.
PM-A3 UV printer printing has a maximum print area of 420 MM by 300 MM, and can handle solid objects up to 100 MM thick. You can even add stunning graphics for high visual impact and unique dimensional effects, whether printing logos or any type of artwork on a vast array of items, including thumb drives, pens, cell phone covers, laptops and more. You're only limited by your imagination.
White ink can be added as a spot color, or a flood behind CMYK to make colors pop on dark backgrounds or clear materials such as acrylic. With the addition of Clear Coat ink, gloss or matte finishes can be produced for enhanced visual and tactile effects.

Summary
• Prints CMYK plus White directly on a wide variety of substrates, including three-dimensional items
• Long-lasting UV LED lamps are safe, energy efficient and generate minimum heat . and we use water cooling system for the LED so that the cooling is more efficient and no wind to effect the ink printing compare with air cooling.
• Advanced two print heads technology can raise the printing speed twice as much.so that the UV printing machine have a good effective work
• White ink is ideal for producing rich, dense color graphics on clear and metallic surfaces
• It is a economical UV pringting system. Just printing 1 square metre,It is cost about ﹩4 ink.
• Fully enclosed system eliminates the risk of UV light exposure to the eyes and skin, while virtually eliminating dust and debris, as well the odor of the UV inks.
• Have a independent cleaning system so that the machine have been closed,and the UPS can support the cleaning system to cleaning the print head every five our three ours. So the print head can not be blocking easily.
